Description :

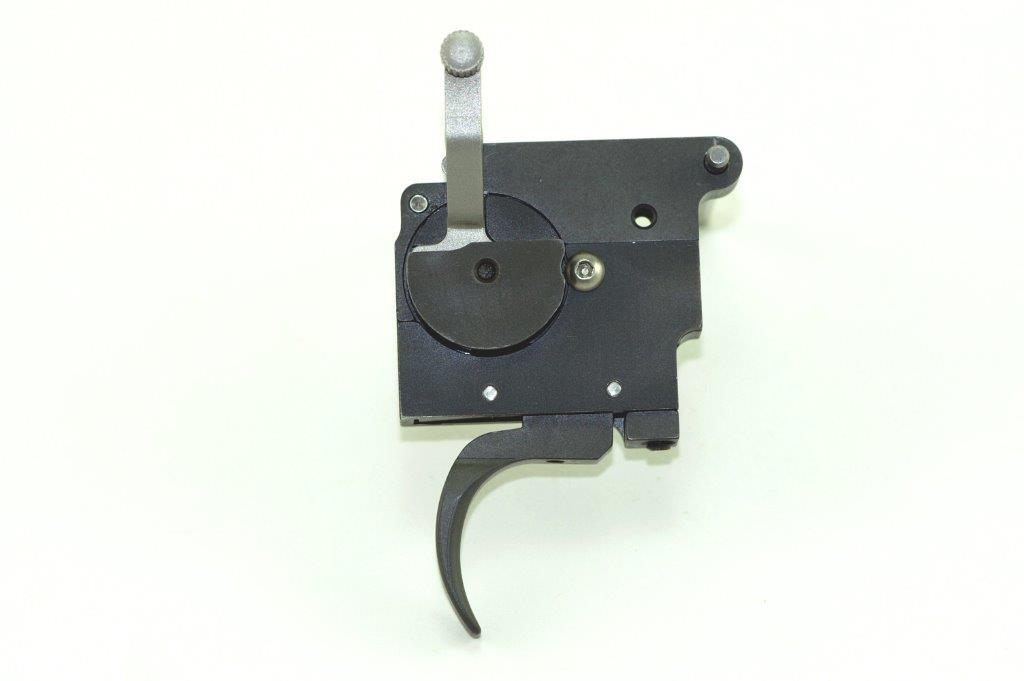

The C.G Model 22 ‘Universal’ Trigger has been designed by Robert Chombart the designer responsible for many innovative inventions, including the C.G-RPA, C.G Millenium, C.G INCH and C.G DELTA actions and tube rifles and stocks.

The C.G Model 22 is a true 2-stage trigger, 3 or 4 levers depending on models that can be easily set for single or two-stage mode and is suitable for all fullbore competition pulls weights.

It is a 100% CNC machined with wire EDM-cut tool steel levers heat treated to 58-60HRC.

The C.G ‘Uni’ trigger is based on a common mechanism we name the ‘Main Housing’ or ‘Gearbox’, on which are attached ‘Upper Frames’ corresponding to the different makes and models of actions for which the C.G22 trigger is intended for. This unique feature ensure a similar functioning and setting, whatever the action the trigger is fitted to.

One of the major advantages of this interchangeability is to allow similar ‘feels’ when using the trigger on different makes and models of actions.

The C.G Model 22 trigger can be supplied with a tang safety for some models (Remington and clones or Tikka-Sako), or bottom safety (in the trigger guard) for all types. Those safeties are simple add-ons and can be added any time on any existing model.

The safeties only function safely In the 2-stage mode.

The Remington model can also be supplied with an add-on bolt release lever.

Pressure points and final pull adjustments are equipped with a precision roller balls ensuring friction-free movements and precise and permanent adjustments.

The right side cover plate is removable for maintenance and bear inspection holes to observe the mechanism when adjusting the trigger.

Adjustable trigger fingers are fixed on a standard 3,5mm diameter rail. The standard model is reversible, straight and knurled one side, and curved the other. A conventional curved model is also available. Those fingers moves lengthwise along the rail for length of pull adjustment and they can also be set sideways by rotation on the rail.

A one-piece ‘tactical’ non-adjustable model is also available for tacticool and spprting models.

The C.G Model 22 trigger is adjustable for:

-Length of pull.

-Forward travel.

-First stage pressure point.

-Second stage pressure point.

-Initial pressure/recocking.

-Final pressure.

–Backlash.

.The C.G 22 trigger suits to date the following actions:

--REMINGTON 700 and clones.

--TIKKA-SAKO.

--C.G MILLENIUM.

--C.G INCH.

-C.G DELTA 59 and 66 (Rem. model).

--C.G RPA QUADLOCK.

--RPA QUADLITE.

--SWING-PARAMOUNT.

--WINCHESTER 70.

--BARNARD ‘S’.

--BARNARD ‘P’.

--MAUSER 98

--MUSGRAVE RSA.

--US1917-P14.

--SPRINGFIELD 1903.

--ACCURACY INTERNATIONAL AI/AF.

Other models are in development:

--ACCURACY INTERNATIONAL AW/AX.

–STEYR-MANNLICHER SSG61.

--HOWA 1500.

- -etc,etc…

Safeties:

2 safety models are offered for the C.G Model 22 Trigger.

          Both function on the same principle blocking the trigger second (sear) lever. If the safety is engaged with the bolt on and the action de-cocked, the bolt cannot be opened. Forcing the opening in this situation could result in trigger damage.

The safeties are simple add-ons on the trigger and can be retro-fitted at any time.

The Upper (tang) safety exists for Remington and clones and for the Tikka-Sako.

The Bottom safety (in the trigger guard) suits all types of actions. This model is totally universal and ambidextrous. Retro-fitting on former models require a very minor modification of the Housing.
